30噸DLER環鏈電動葫蘆穿軸式
DLER環鏈電動葫蘆穿軸式產品參數：
|
MODEL型號 |
DLER 30-12 |
||
|
DLER 1/DLER2 |
DLER3 |
DLER4 |
|
|
Maximum load 最大載荷(≤6m/h) |
35t |
||
|
Rated load(Ton) 額定載荷(≤6m/h) |
30t |
||
|
Lifting speed(m/min)起升速度 |
單速0.9 |
雙速0.28/0.9 |
變頻0.15~0.9 |
|
Motor Power(kw)電機功率 |
單速3*2 |
雙速1.1/3*2 |
變頻3*2 |
|
Rotation speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class 電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply 工作電壓 |
Ac 380V L1 L2 L3 〧 |
||
|
Control Volatage 控制電壓 |
AC36V |
||
|
NO.of Load Chain鏈條回數 |
12 |
||
|
Spec.of Load Chain 鏈條規格 |
11.2x34 |
||
|
Working level 工作級別 |
M5 |
||
|
|

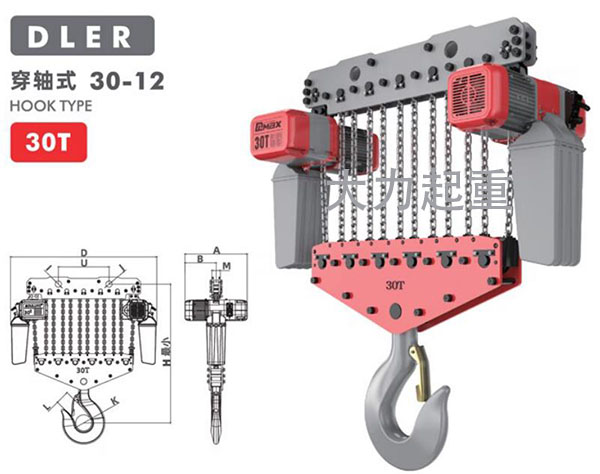

長度 |
|
H |
1245 |
|
A |
780 |
|
B |
390 |
|
D |
1645 |
|
U |
570 |
|
I |
?70.5 |
|
J |
?70.5 |
|
M |
95 |
|
N |
120 |
|
K |
140 |
|
L |
95 |
